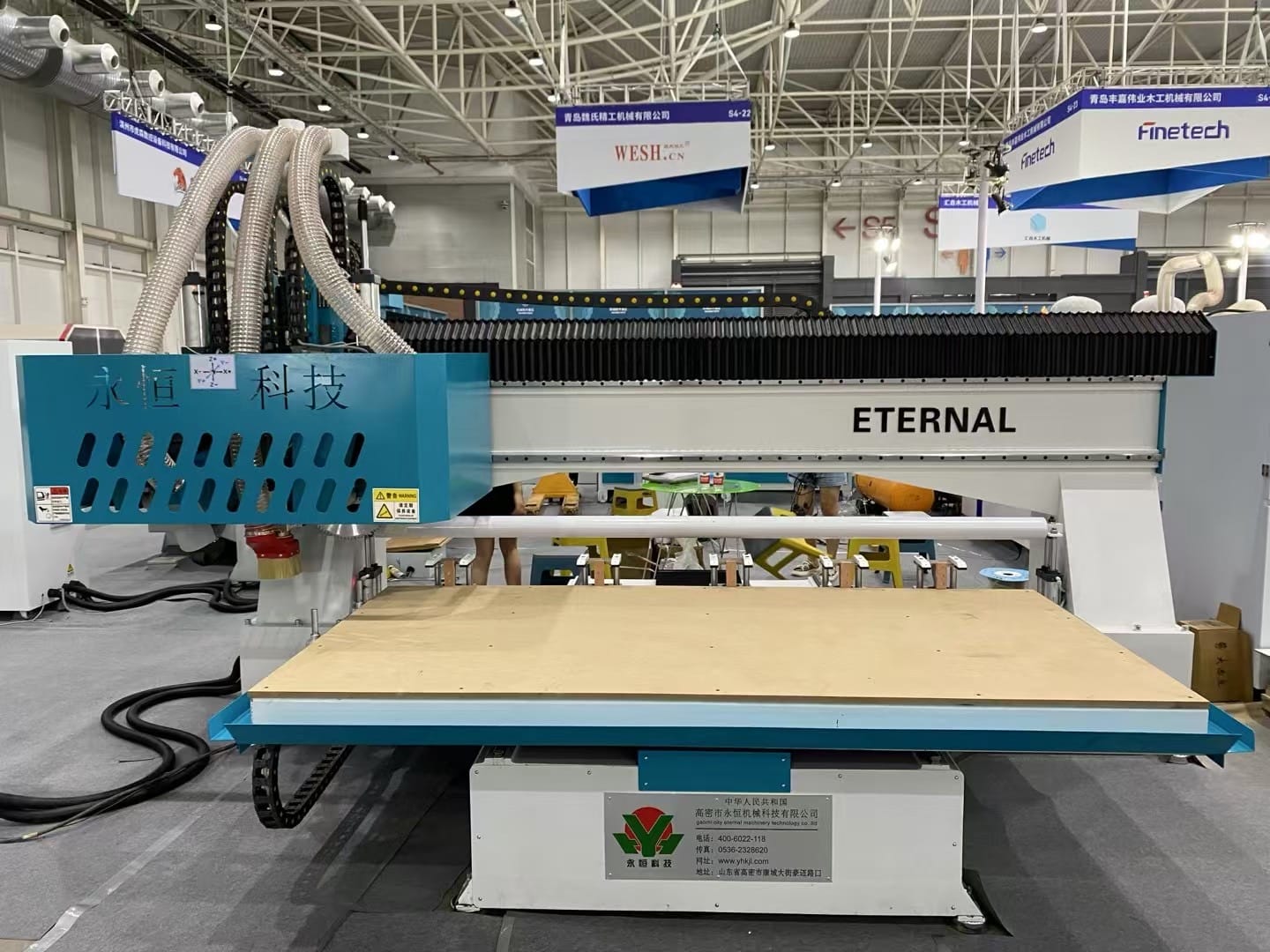

Eternal® YHJ-1224 Automatic CNC Wood Cutting Machine & Panel Saw
Modernize your woodworking production line with the Eternal® YHJ-1224 automatic CNC wood cutting machine. Developed by Gaomi Yongheng Machinery Technology Co., Ltd., this industrial-grade system delivers multi-axis bidirectional panel cutting—handling both longitudinal and transverse cuts in a single setup without manual repositioning.
Engineered to replace single-cut electronic saws and dangerous manual push tables, the YHJ-1224 operates at more than six times the efficiency of a manual sliding table saw With cut depths spanning 0 mm to 120 mm and cutting speeds reaching up to 40 m/min it delivers continuous high-output sizing for MDF, particle board, plywood, and solid wood sheets.
Engineered for High Precision, Operator Safety, and Zero Learning Curve
The Eternal YHJ-1224 integrates an enclosed blade mechanism and dual pneumatic hold-down cylinders to secure materials firmly throughout every pass. By removing hand operations near high-speed blades, it eliminates standard table saw blade-contact hazards.
Equipped with an authentic Taiwan Syntec CNC control system and an independently developed simplified operator interface (“foolproof mode”)[, new operators and technicians can master machine programming and execute complex batch cut lists within minutes.
Key Features & Capabilities
- Bidirectional CNC Sizing: Executes both longitudinal (X-axis 2500 mm) and transverse (Y-axis 1300 mm) cuts automatically, removing the need for manual sheet turning.
- 6x Output Efficiency: Delivers more than six times the daily cutting throughput of standard manual sliding table saws.
- Deep Stack Cutting: Accommodates material thicknesses from 0 mm to 120 mm, supporting simultaneous stack cutting of sheet goods.
- Premium Linear Motion: Built with Taiwan TBI precision linear guide rails and ball screws for smooth motion and long-term positioning reliability.
- Industrial Electronics: Outfitted with genuine Schneider / Chint electric components for uninterrupted continuous plant operation.
- Dual Pneumatic Hold-Down: Dual overhead pneumatic clamping cylinders maintain strict rigidity across 2440 × 1220 mm workpieces to prevent shifting.
- High-Torque 6000 RPM Spindle: Up to 7.5 kW spindle motor driving a 355 mm saw blade at 6000 r/min ensures clean cuts without edge chipping.
Technical Specifications
SpecificationStandard Configuration (7.5 kW)Vacuum Table Configuration (5.5 kW)Working Table Dimensions2440 × 1220 mm (Standard 4×8 ft)2440 × 1220 mm (Standard 4×8 ft)Axis Travel (X / Y / Z)2500 mm / 1300 mm / 160 mm2500 mm / 1300 mm / 160 mm (Z/Vertical: 160 mm)Spindle Motor Power7.5 kW 3-Phase Asynchronous (Forward)5.5 kW High-Torque Spindle (Forward)Spindle / Blade SpeedMax 6000 r/minMax 6000 r/minCutting Thickness Range0 – 120 mm0 – 120 mmMax Saw Blade Diameter355 mm355 mmMax Linear Feed Speed36 m/min40 m/minControl SystemTaiwan Syntec (新代)Taiwan Syntec (新代)Linear Guide & Ball ScrewTaiwan TBI High-PrecisionTaiwan TBI High-PrecisionElectrical ComponentsSchneider Electric (France)Schneider Electric / CHNTVacuum Hold-Down PumpNone (Pneumatic only)Equipped (Integrated Vacuum Table)Clamping SystemDual Top Pneumatic CylindersDual Top Cylinders + Vacuum Hold-Down
Frequently Asked Questions
How does the YHJ-1224 prevent operator injuries?
Unlike conventional table saws where hands manually push panels past exposed rotating blades, the YHJ-1224 secures timber under pneumatic clamping cylinders and executes programmed cuts automatically within a protected enclosure
Can this machine execute both horizontal and vertical cuts without rotating the sheet?
Yes. The dual-axis CNC system moves along both X (2500 mm) and Y (1300 mm) travels, enabling bidirectional rip and cross-cuts in the same cycle
Is specialized CNC programming experience required?
No. The machine features a proprietary simplified touch interface (“foolproof mode”) built on Taiwan Syntec controls, allowing standard operators to enter dimensions and run batches without G-code knowledge.
Eliminate table saw bottlenecks and protect your team. Upgrade to the Eternal® YHJ-1224 automatic CNC wood cutting machine to cut labor costs, maximize yield, and achieve 6x cutting efficiency
