Heavy-Duty Industrial Cyclone Dust Collector | 2-Stage Dust Extraction System
Optimize your facility’s air quality and protect workforce health with our premium heavy-duty industrial cyclone dust collector. Engineered specifically to handle the intense demands of commercial woodworking plants, CNC manufacturing hubs, and furniture fabrication facilities, this high-velocity dust extraction system offers an efficient, continuous-duty solution for managing massive debris loads. By leveraging advanced cyclonic separation engineering, the system intercepts up to 99% of heavy wood chips and coarse planar shavings before they reach the secondary filters, ensuring your shop maintains peak static pressure and maximum CFM performance without clogging.
Advanced Engineering & Performance Features
- High-Efficiency Cyclonic Separation: The heavy-gauge steel primary cyclone chamber creates a powerful centrifugal vortex, forcing large chips and abrasive particles straight down into the collection bin to extend the lifespan of your secondary fine dust filter.
- Dual-Stage Micro-Particle Filtration: Equipped with an advanced multi-cartridge secondary filtration chamber designed to trap airborne, breathable dust particles down to 1–5 microns, exceeding standard workshop safety regulations.

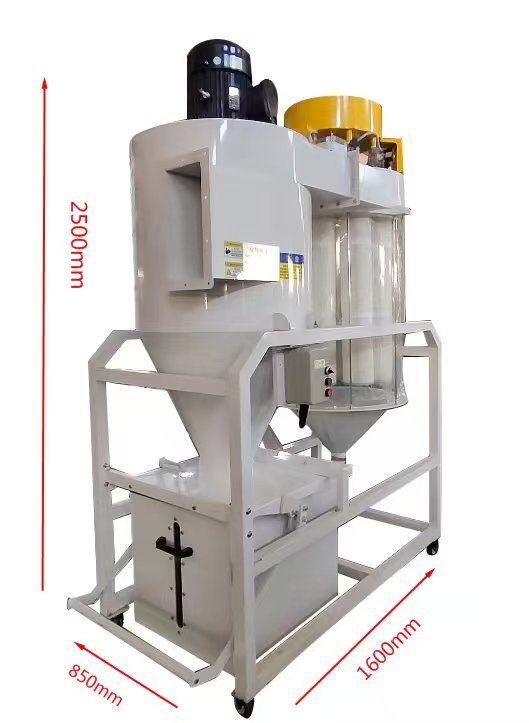

- Compact, Space-Saving Footprint: Engineered with a smart vertical layout measuring 2500mm in height, 1600mm in length, and 850mm in width, allowing it to integrate smoothly against workshop walls or directly alongside automated manufacturing lines.
- Industrial Centralized Control Box: Features a dust-proof, heavy-duty electrical switchboard with built-in magnetic starters, thermal overload safety switches, and a high-visibility integrated emergency stop button.
- Quick-Release Compression Waste Bin: Designed with a large-capacity lower waste box featuring heavy-duty rubber gasket seals to completely prevent air bypass, paired with a quick-release lever mechanism for seamless, rapid dumping.
Technical Specifications & Architectural Blueprint
| Core Machine Metric | Engineering Dimension | Workshop Integration Profile | |
|---|---|---|---|
| Total System Height | 2,500 mm | Vertical configuration maximizes shop floor space utilization. | |
Heavy-Duty Machinery & Workstation Compatibility
This commercial-grade woodworking dust extractor is custom-built to provide centralized or dedicated multi-port source extraction for high-demand industrial processing equipment, including:
- High-speed automated CNC routers and nesting machinery lines.
- Industrial thickness planers, jointers, and heavy wide-belt sanders.
- Centralized multi-station artisan woodworking and carpentry shops.
- Dry particulate air extraction for plastics, advanced composites, and light chemical processing environments.
